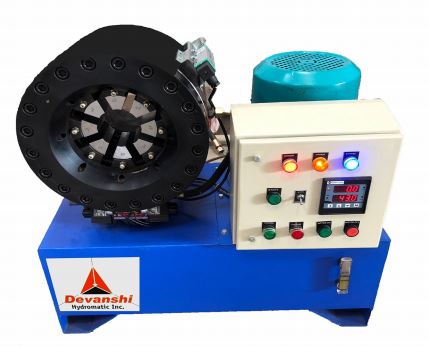

Horizontal Hydrolic Hose Crimping Machine
| Technical Parameters |
| Type |
DHI-28ED |
| Capacity Hose Size (ID) |
¼" to 2” R2 1 1/2" 4SH |
| Max. Opening(mm) |
Die Size +50 |
| Work Head Trough Bore |
125mm |
| Crimping Force (T) |
2800KN/280T
|
| Cycle Time |
45 Sec. Max.
|
| MOtor (HP) |
3 HP / 440V AC
|
| Controls |
Digital Control
|
| Die Segment |
¼’’ To 2’’(9 SET)
|
| Overall Dimension (WxLxH) |
450 x 650 x 750mm
|
| Weight (Approx.) |
250 Kg.
|
| Mode of Operation |
Push Button Having & AUTO Cycle WithMulti Degassing.
|
| Technical Parameters |
| Type |
DHI-37ED |
| Capacity Hose Size (ID) |
¼" to 4” R2 2" 6 Wire |
| Max. Opening(mm) |
Die Size +55mm |
| Work Head Trough Bore |
215mm |
| Crimping Force (T) |
370T/3700KN
|
| Cycle Time |
45 Sec. Max.
|
| MOtor (HP) |
10 HP / 440V AC
|
| Controls |
Digital Control
|
| Die Segment |
¼’’ To 4’’(14 Nos.)
|
| Overall Dimension (WxLxH) |
500 x 950 x 950MM
|
| Weight (Approx.) |
700 Kg.
|
| Mode of Operation |
Push Button Having & AUTO Cycle with Multi Degassing
|
