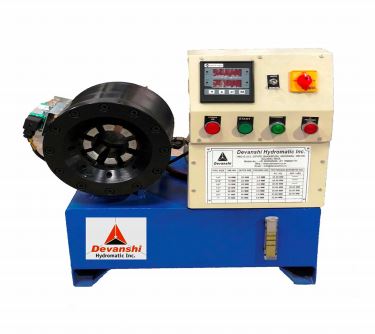

Horizontal Hose Crimping Machine
Horizontal Hose Crimping Machine
Horizontal Hose Crimping Machine
Model : DHI-21ED
| Technical Parameters | |
|---|---|
| Type | DHI-21ED |
| Capacity Hose Size (ID) | ¼" to 1” R2 3/4" 4SH |
| Max. Opening(mm) | Die Size +40mm |
| Work Head Trough Bore | 85mm |
| Crimping Force (T) | 2000KN/200T |
| Cycle Time | 45 Sec. Max. |
| MOtor (HP) | 2 HP / 440V AC |
| Controls | Push Button Having & Digital Automatic Control |
| Die Segment | ¼’’ To 1" (6 Nos.) |
| Master Die Shoe Length | 88mm |
| Overall Dimension (WxLxH) | 400 x 550 x 600mm |
| Weight (Approx.) | 150 Kg. |
Model : DHI-32ED
| Technical Parameters | |
|---|---|
| Type | DHI-32ED |
| Capacity Hose Size (ID) | ¼" to 3" R2 2" R13 |
| Max. Opening(mm) | Die Size +50mm |
| Work Head Trough Bore | 165mm |
| Crimping Force (T) | 3200KN/320T |
| Cycle Time | 45 Sec. Max. |
| MOtor (HP) | 7.5 HP / 440V AC |
| Controls | Push Button Having & Digital Automatic Control |
| Die Segment | ¼’’ To 3" (11 Nos.) |
| Master Die Shoe Length | 125mm |
| Overall Dimension (WxLxH) | 450 x 850 x 850mm |
| Weight (Approx.) | 450 Kg. |
